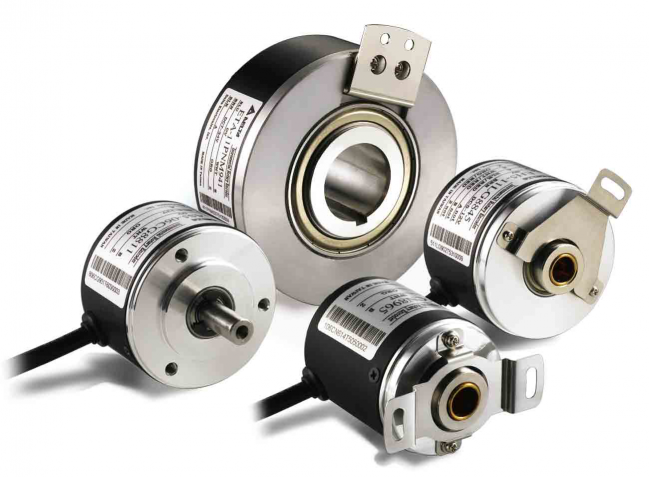

ROE-E Series is an angle-measuring sensor device which is used to detect angular velocity. It can convert the angular velocity that is input into the shaft to the corresponding pulse numbers following optical communication principle. Small size, high precision and reliable performance are its features. ROE-E Series is usually used for detecting speed, rotation direction and angular displacement. ES(Solid Shaft) EH(Hollow Shaft) ET(Through Hole Shaft) SPECIFICATIONS ES Series: Outer Diameter of Solid Shaft: 36.6mm; Outer Diameter of Solid Shaft: 50mm EH Series: Outer Diameter of Hollow Shaft: 36.6mm; Outer Diameter of Hollow Shaft: 38.7mm; Outer Diameter of Hollow Shaft: 50mm ET Series: Outer Diameter of Through Hole Shaft: 100mm Light and compact. High reliability. Incremental Encoder. It will not increase the load of the mechanical system. Resolution: 100-5000ppr Output Form: Open Collector, Voltage Output, Line Driver, Push Pull Power Voltage Range: 5-24V Responsiveness: 300kHz max. APPLICATIONS Label Printing Machine, Detecting Machine, Elevator, Auto Bottling Machine, Fixed Length Cutting Machine, Elevator Door
